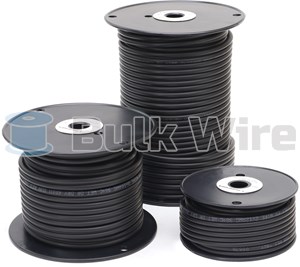

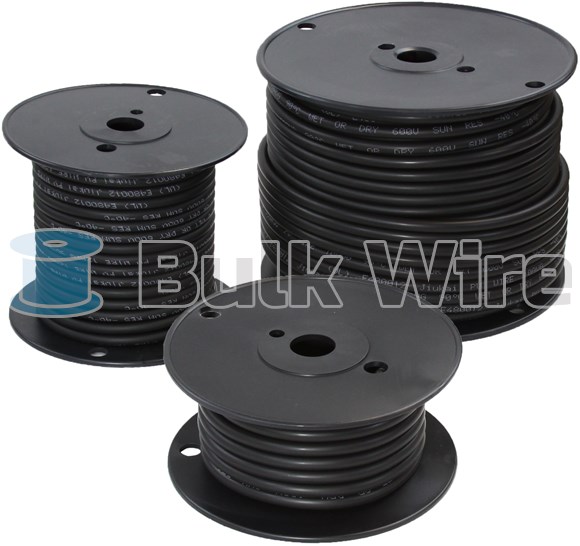

Solar Photovoltaic (PV) Wire 600V UL 4703

For use in photovoltaic (PV) solar power applications and solar panels. Excellent sunlight, UV and ozone resistance. Rated for direct burial and extreme temperatures. UL 4703, UL 44. Read Full Description
1

Enter quantity and add to cart

Wire Gauge (AWG)
Length
Color
SKU
Availability
Price
Select All/None
10
25 ft.
Black
Wire-PV6-10-00-25
Availability: In Stock
$16.85

0
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10+
10
50 ft.
Black
Wire-PV6-10-00-50
Availability: In Stock
$29.77

0
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10+
10
100 ft.
Black
Wire-PV6-10-00-100
Availability: In Stock
$53.26

0
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10+
12
25 ft.
Black
Wire-PV6-12-00-25
Availability: In Stock
$12.07

0
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10+
12
50 ft.
Black
Wire-PV6-12-00-50
Availability: In Stock
$21.37

0
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10+
12
100 ft.
Black
Wire-PV6-12-00-100
Availability: In Stock
$40.27

0
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10+

Single conductor, insulated and jacketed, sunlight resistant, photovoltaic wire rated for 90°C wet or dry, 600V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 630.31 (and other applicable parts of the National Electric Code (NEC), NFPA 70).

Conductor: Soft annealed stranded copper per ATSM B-3

Insulation: Cross-linked Polyethylene (XLPE)

Jacket: Extruded thermosetting insulation

Temperature Range: -40°C to +90°C (-40°F to +194°F)

Compliances: UL Type PV (overall) UL 4703, UL 44, UL RHW-2 600V Direct Burial, Passes UL VW-1 Flame Test, RoHS Compliant

Features: Excellent thermal aging, solder damage, flame, and moisture resistance. Resists solvents, grease, ozone and other chemicals. Low power loss, ideal for high frequency applications.

Voltage Rating: 600 VAC

Gauge (AWG)Number of StrandsGauge of Strands (AWG)Finished Wire DiameterMax. Resistance (DC at 20°C) Ohm/perNom. Weight
Inchmm1000-ftKmLBS./1000 ft.KG/Km
10105300.2446.201.083.5554.180.5
1265300.2135.401.725.6444.265.7
